Rohs 10mm Dc 1.5v 3v 3.3v 5v 6v Plastic Planetary Gearbox Gear Brush Motor
Product Details:
| Place of Origin: | China |
| Brand Name: | Kind Motor |
| Certification: | ISO9001/RoHS/CE |
| Model Number: | KPS10-M10 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1PCS |
|---|---|
| Price: | $0.7-$1.5/PCS |
| Packaging Details: | Expect Standard Carton and Foam |
| Delivery Time: | 1-6 weeks |
| Payment Terms: | L/C, D/A, D/P, T/T,Paypal, Western Union |
| Supply Ability: | 500000/Month |
|
Detail Information |
|||
| Voltage(v): | 1.5-12v | Speed(rpm): | 30-200rpm |
|---|---|---|---|
| Gears Material: | Plastic Gearbox | Brush Type: | Metal Brush |
| Type: | Plastic Planetary Gear Motor | Rated Torque: | 10-600g.cm |
| Stall Torque: | ≤1000g.cm | Continuous Current(a): | 0.02~3A |
| Output Power: | 0.05-1W | Weight: | 8g |
| Highlight: | 5V Plastic Geared Motor,600gcm Plastic Geared Motor,M20 Brushed 5v gear motor |
||
Product Description

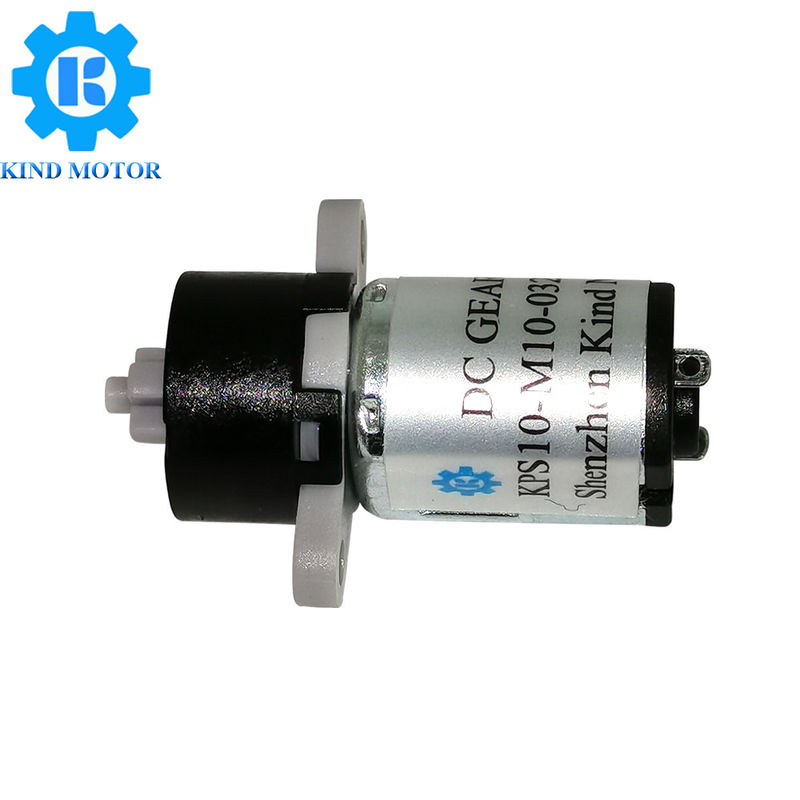

Micro 10mm dc 1.5v 3v 3.3v 5v 6v plastic planetary gearbox gearmotor
Product introduction:
This is diameter 10mm dc precious metal brush motor with plastic planetary gearbox,the
gearbox can with M10,M20 and M30 motor,it's have low noise and small size,the price is
very low.
Brand:Kind Motor
| Model | KPS10-M10/KPS10-M20 |
| Gears Material | Plastic |
| Gearbox Reduction ratio | 1/171 |
| Motor model | M10 or M20 Brushed Motor |
| Brush Type | Precious Metal Brush |
|
Voltage
|
1.5v,3v,3.3v,3.7v,4.5v,5v,6v,7.4v,9v,12v
|
|
Speed
|
30rpm to 200rpm
|
|
Torque
|
≤1kg.cm
|
|
Shaft Size
|
Gear shaft or + shaft |
| Typical Application |
Electric Lock, Safebox, Robot, Electric Valve, Toy,Massage instrument,Eyelash brush.
|
Product Parameters
█ODM & OEM
█If you need other size and patameters,diameter from 6mm~60mm can be chosen
█The parameters and shaft size can customized
M10 Metal-brush motor with 10mm plastic gearbox
M20 Metal-brush motor with 10mm plastic gearbox,the shaft is plastic gear
