high power micro 12mm dc 1.5v 3v 3.7v 4.5v 5v 6v 12v 24v N10 N20 N30 gear reducer motor for smart home
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | kind motor |
| Certification: | CCC, ce, RoHS, ISO9001 |
| Model Number: | KGM12-N20 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 Pieces |
|---|---|
| Price: | $1.80 - $3.50/Pieces |
| Packaging Details: | 1. Expect Standard Carton and Foam <br>2. 1000pcs/carton |
| Supply Ability: | 1000000 Piece/Pieces per Month |
|
Detail Information |
|||
| Warranty: | Other | Usage: | BOAT, Car, Electric Bicycle, FAN, Home Appliance, Cosmetic Instrument, SMART HOME, Electric Lock |
|---|---|---|---|
| Type: | GEAR MOTOR | Torque: | ≤3kg.cm |
| Construction: | Permanent Magnet | Commutation: | Brush |
| Protect Feature: | Explosion-proof | Speed(RPM): | 5-6000rpm |
| Continuous Current(A): | 0.05-0.5A | Efficiency: | IE 1 |
| Product Name: | N10 N20 N30 Gear Reducer Motor For Smart Home | Gear Material: | Stainless Steel |
| Application: | Intelligent Product | Operating Temperatue Range: | -10- +60℃ |
| Size: | 12*24mm | Weight: | 10g |
| Direction Of Rotation: | CW CCW | Voltage Range: | 1.5v-24v |
| Noise: | Low Noise Level | Brush Type: | Carbon Brush Or Metal Brush |
| Port: | ShenZhen /HK | ||
Product Description

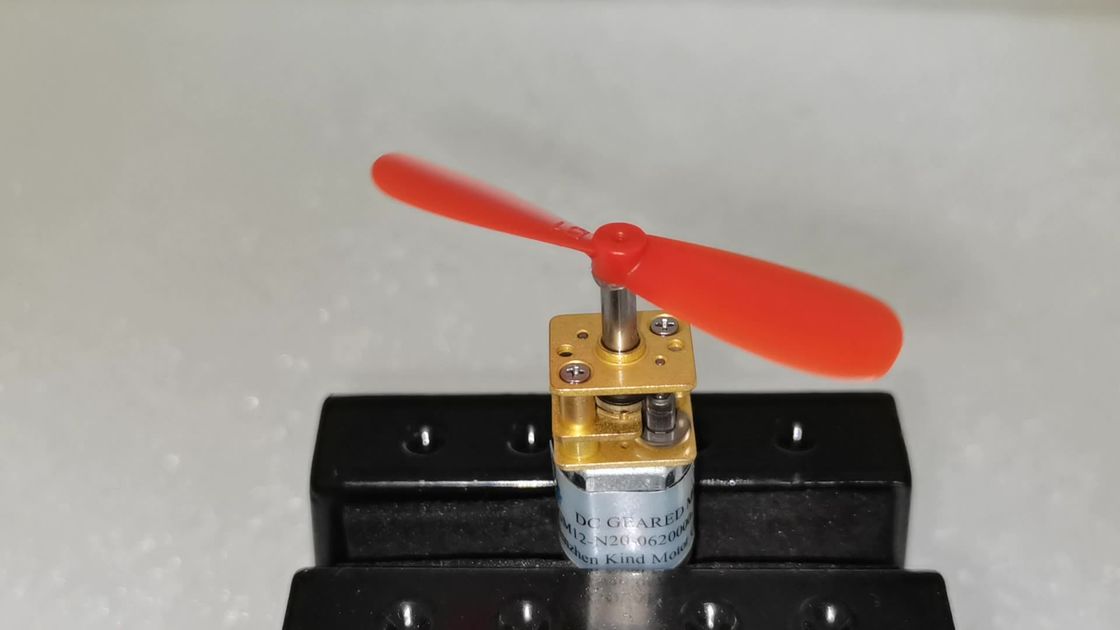

high power micro 12mm dc 1.5v 3v 3.7v 4.5v 5v 6v 12v 24v N10 N20 N30 gear reducer motor for smart home
Support Customization | ||
Prodcut Type | DC Spur Geared Motor | |
Model | KGM12-N20 | |
Voltage | 1.5-24v | |
Speed | 6 to 6000rpm | |
Torque | ≤3kg.cm | |
Shaft diameter | 3mm or 4mm D Shaft(Can Customized) | |
Encoder | Can Add | |
Typical Application | Electric Lock, Safebox, Robot, Acuator, Electric Valve, Toy,Intelligent product. | |
█ The parameters and shaft size can customized
Product superiority:
█ 15 years experience in gear and motor design
█ OEM, ODM
█ Many type products to choose
█ 100% inspection before shipment
█ Good price and service
KGM10-M10
Diameter 10mm spur gear motor
KGM16-050
Diameter 16mm spur gear motor
KGM20-180
Diameter 10mm spur gear motor
KGM1024-N20
Diameter 10mm spur gear motor
KPM16-050
Diameter 16mm planetary gear motor
KPM22-180
Diameter 16mm planetary gear motor
> > > >More Products
Shipping Method | Shipping Time | Advantages & Disadvantages |
Express like DHL/UPS/FEDEX/TNT | 3-5 days with tracking number | Fast and expensive, door to door |
Air Shipping | 3-5 days | Fast, airport to airport, customers have to pick up the goods in the airport |
Sea Shipping | 15-30 days | Cheap and slow, port to port, customers have to pick up the goods in the port |
Question 1: Can you customize the motor and geared motor according to the customer's requirements?
Answer:YES. We can customize the parameters and the size of the motor and geared motor
Question 2: Can you provide the samples?
Answer:YES. Our company can provide the samples to you, and the delivery time is about 5-15days according to the specification of motor and gearbox you need.
Question 3:How to buy our products?
Answer: send us inquiry → confirm the parameters → receive our quotation → production the sample test → sign contract/deposit → mass production.
Question 4:What kind of data do i need to provide if i want to order?
Answer: Please kindly tell us your rated voltage, no load speed, load speed, load torque and size range, we can offer you the best plan.
Question 5:What if i don't know the above data?
Answer: Please contact our salesman to handle, we'll answer your questions patiently.
Question 6:How to pay the payment?
Answer: We accept payment by T/T, PayPal, the other payment ways also could be accepted. Please contact us before you pay by the other payment ways.
Question 7: How do contact us ?
Answer:Please send an inquiry . We will provide you with better product quality and service, thank you!
