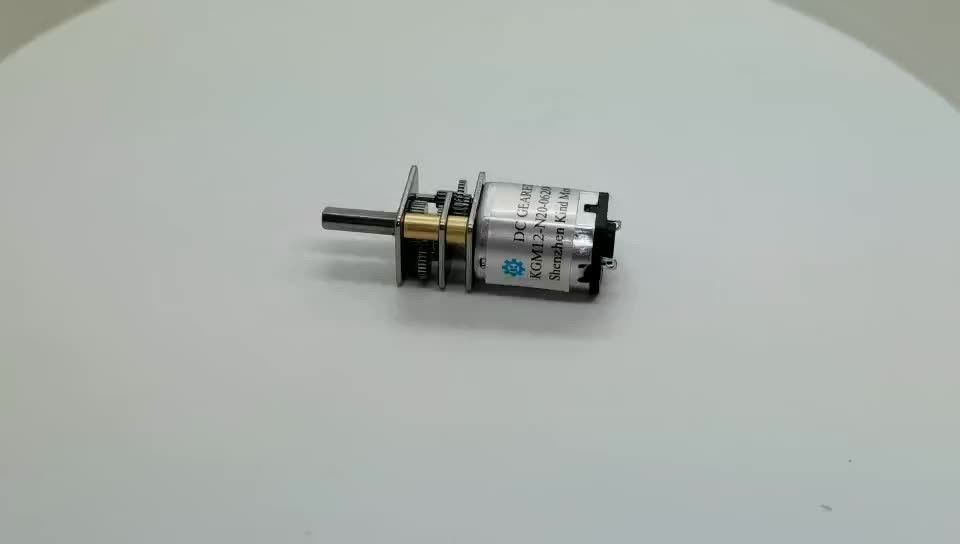

High quality low current 10mm 12mm 30 rpm 60rpm 100rpm mini dc geared motor 24v
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | kind motor |
| Certification: | CCC, ce, RoHS, ISO9001 |
| Model Number: | KGM12-N20 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 Pieces |
|---|---|
| Price: | $3.50/Pieces 10-99 Pieces |
| Packaging Details: | 1. Expect Standard Carton and Foam<br> <br>2. 1000pcs/carton |
|
Detail Information |
|||
| Warranty: | 1year | Usage: | BOAT, Car, Electric Bicycle, FAN, Home Appliance, Electric Lock |
|---|---|---|---|
| Type: | GEAR MOTOR | Torque: | ≤3kg.cm, ≤3kg.cm |
| Construction: | Permanent Magnet | Commutation: | Brush |
| Protect Feature: | Explosion-proof | Speed(RPM): | 5~6000rpm |
| Continuous Current(A): | 0.05-0.5A | Efficiency: | IE 1 |
| Gear Material: | Stainless Steel | Application: | Home Applicance |
| Operating Temperatue Range: | -10- +50℃ | Thrust Play Of Shaft: | ≤0.3mm |
| Size: | 12*24mm | Weight: | 10g |
| Voltage(V): | DC1.5- 12.0V | Noise: | Low Noise Level |
| Feature: | High Torque Low Rpm | ||
Product Description
High quality low current 10mm 12mm 30 rpm 60rpm 100rpm mini dc geared motor 24v
Support customized | ||
Prodcut Type | DC Gear Motor | |
Model | KGM12-N20 | |
Voltage | 1.5-24v | |
Speed | 10 to 3000rpm | |
Shaft dia | 3/4mm dia | |
Size | 12*24mm | |
Typical Application | Message equipments, electronic toys, home applications, electronic lock, door lock, robot, camera, automatic products | |
KPS10-M10
KGM12-N20
KGM1024-N20
Packing
Delivery
Shipping Method | Shipping Time | Advantages & Disadvantages |
Express like DHL/UPS/FEDEX/TNT | 3-5 days with tracking number | Fast and expensive, door to door. |
Air Shipping | 3-5 days | Fast, airport to airport, customers have to pick up the goods in the airport |
Sea Shipping | 15-30 days | Cheap and slow, port to port, customers have to pick up the goods in the port |
Q: Can you make motors customized?
A: Yes, we can and welcome.
Q: What's the deliverly time of sample and the cargo?
A:For regular specification, it needs about 3-5 working days for samples, and 15-20 working days for the cargo; For customized specification, it needs about 7-10 working days for samples, 25-30 working days for the cargo.
Q:What is your MOQ?
A:Generally, the MOQ is 100 pieces for our motors. But we can support you with small quantity for the first trial order .
Q:Do you have motors in stocks?
A: No, all motors are made according to the customers' requirements, so it is difficult for us to make in stocks.
Q: What is the payment terms?
A:T/T, Paypal, Credit Card.etc, easy for your business.
Q:What information you need provide if you want we recommend motors for you?
A:You need provide the basic specification of the motor, like: Dimesion, Application, Voltage, Speed and Torque. If you have samples or drawings, it's better you can send it to us.
