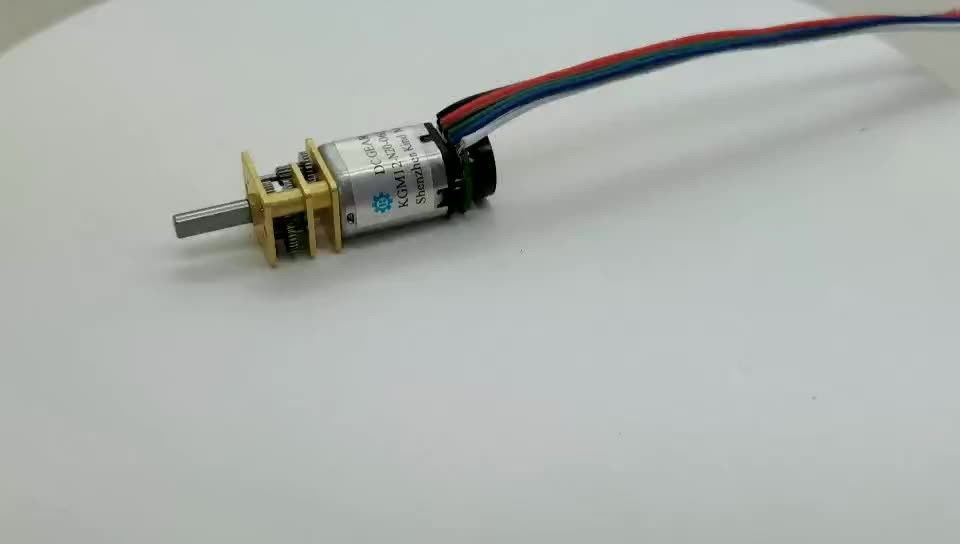

Silent micro 12v dc gear motor high torque 80 rpm with encoder
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | kind motor |
| Certification: | CCC, ce, RoHS, VDE, ISO9001 |
| Model Number: | KGM12-N20 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1000 Pieces |
|---|---|
| Price: | $2.50 - $6.25/Pieces |
| Packaging Details: | 1. Expect Standard Carton and Foam<br> <br>2. 1000pcs/carton |
| Supply Ability: | 1000000 Piece/Pieces per Month Stock Available |
|
Detail Information |
|||
| Warranty: | 1year | Usage: | BOAT, Car, Electric Bicycle, FAN, Home Appliance, Electric Lock |
|---|---|---|---|
| Type: | GEAR MOTOR | Torque: | ≤3kg.cm, ≤3kg.cm |
| Construction: | Permanent Magnet, Permanent Magnet | Commutation: | Brush |
| Protect Feature: | Explosion-proof | Speed(RPM): | 5~6000rpm |
| Continuous Current(A): | 0.05-0.5A | Efficiency: | IE 1 |
| Gear Material: | Stainless Steel | Application: | Home Applicance |
| Operating Temperatue Range: | -10- +50℃ | Thrust Play Of Shaft: | ≤0.3mm |
| Size: | 12*24mm | Weight: | 10g |
| Voltage(V): | DC1.5- 12.0V | Continuous Current: | 0.05-0.5A |
| Port: | Shenzhen/HK | ||
Product Description
Mini N20 metal 12mm Diameter Gear Box 3v dc low rpm gear motor encoder
1. Rated Voltage: 1.5v 3v 4.5v 5v 6v 9v 12v
2.Speed:10-2000RPM
3. Shaft dimension can be customized
4. Gearbox length: 9mm, 12mm
5. Motor diameter with 12mm
6. Direction: CW CCW
7. Long life, low noise
8.Can be equipped with encoder
9.Application:Robot, Home Appliance, Door Lock etc
Note: It's the typical specificaitoin for reference only, Motor's votage speed, ratio, torque and shaft can be customzied after evaluation(Voltage can make from 3-12v, speed from 10 to 3000rpm, ratio from 1: 1000, toruqe from 10 to 1000g.cm)
Please tell me your requirement if can not find suitable motor.
10mm dc gear motor with
plastic gear
12mm dc gear motor with
encoder
24mm dc gear motor
Founded in 2005, Kind Motor is a private high-tech enterprise, and mainly engaged in the design, development, production, sale and service of precision DC motors and gear motors.
Our products are widely applied to robots, intelligent door locks,medical equipment, automobile systems, communication equipment,digital cameras and domestic appliances.
