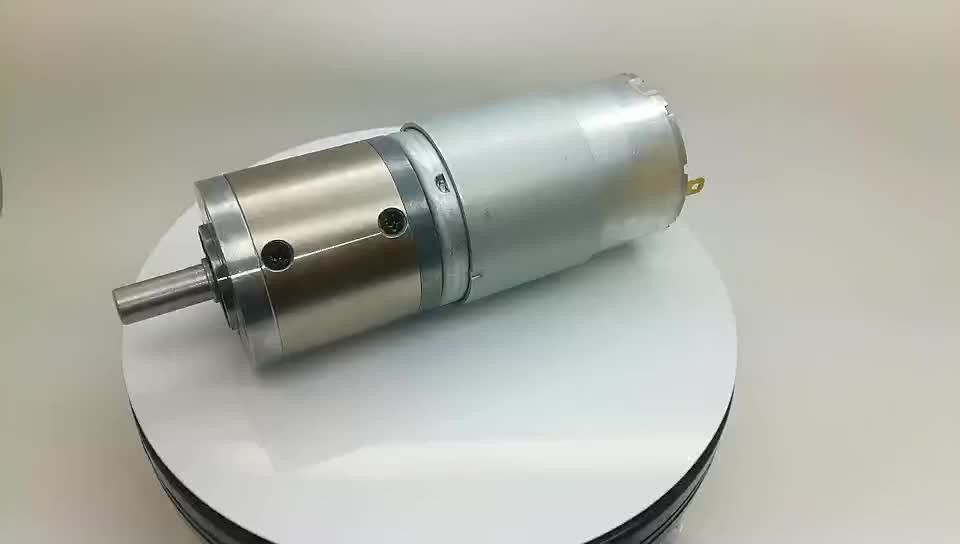

High torque 32mm 42mm 45mm 12v 24v 120w 150w 160w 200w dc planet gear box motor
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | kind motor |
| Certification: | CCC, ce, RoHS, VDE, ISO9001 |
| Model Number: | KPM42-775 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 Pieces |
|---|---|
| Price: | $8.50 - $23.00/Pieces |
| Packaging Details: | 1. Expect Standard Carton and Foam <br>2. 1000pcs/carton |
| Supply Ability: | 1000000 Piece/Pieces per Month Stock Available |
|
Detail Information |
|||
| Warranty: | 1year | Usage: | BOAT, Car, Electric Bicycle, FAN, Home Appliance, Electric Lock |
|---|---|---|---|
| Type: | GEAR MOTOR | Torque: | ≤95kg.cm |
| Construction: | Permanent Magnet | Commutation: | Brush |
| Protect Feature: | Explosion-proof | Speed(RPM): | 1-3000rpm |
| Continuous Current(A): | 0.1-5A | Efficiency: | IE 1 |
| Product Name: | 32mm 42mm 45mm 12v 24v 120w 150w 160w 200w Dc Planet Gear Box Motor | Application: | Medical Equipment |
| Operating Temperatue Range: | -10- +50℃ | Gear Material: | Metal |
| Size: | 42mm | Weight: | 600g |
| Voltage(V): | DC6- 36.0V | Direction Of Rotation: | CW CCW |
| Noise: | Low Noise Level | Brush Type: | Carbon Brush Or Brushless |
Product Description
High torque 32mm 42mm 45mm 12v 24v 120w 150w 160w 200w dc planet gear box motor
Prodcut Type | DC Gear Motor |
Model | KPM42-775 |
Voltage | 6-36v |
Speed | 1 to 5000rpm |
Torque | ≤150kg.cm |
Shaft diameter | 8mm D Shaft(Can Customized) |
Size | (L+66)*42.4mm |
Encoder | Can Add |
Typical Application | Message equipments, electronic toys, home applications, electronic lock, door lock, robot, camera, automatic products |
2. The voltage range 6v-48v,as 6v,7.4v,8v,9v,12v,14.4v,18v,24v,36v,48v etc
3. This gearbox can with other DC Motor,as dc brush motor,DC
KPS10-M10
KGM12-N20
KGM1024-N20
SHEN ZHEN KIND MOTOR CO.,LTD Founded in 2005, focus on design and manufacture motor and small gear motors.
Our products are widely applied to robots, intelligent door locks,medical equipment, automobile systems, communication equipment,digital cameras and domestic appliances.
Our Advantages:
1. Over 10 years experience in dc motor and dc gear motor and so on.
2. Exporting for worldwide, with satisfied clients more than 40 countries.
3. Competitive price, excellent service, integrated certificate system.
4. Our main products are DC Micro Motor and Gear Motor,Auto dc motor, Electric motor,
Gear Motor, DC Motor, Brush DC motor, Brushless DC motor and so on. Welcome to visit our facrtory.
5. We've got CE, RoHS certifications for most of our products.
Packing
Delivery
Shipping Method | Shipping Time | Advantages & Disadvantages |
Express like DHL/UPS/FEDEX/TNT | 3-5 days with tracking number | Fast and expensive, door to door. |
Air Shipping | 3-5 days | Fast, airport to airport, customers have to pick up the goods in the airport |
Sea Shipping | 15-30 days | Cheap and slow, port to port, customers have to pick up the goods in the port |
Q: Can you make motors customized?
A: Yes, we can and welcome.
Q: What's the deliverly time of sample and the cargo?
A:For regular specification, it needs about 3-5 working days for samples, and 15-20 working days for the cargo; For customized specification, it needs about 7-10 working days for samples, 25-30 working days for the cargo.
Q:What is your MOQ?
A:Generally, the MOQ is 1000 pieces for our motors. But we can support you with small quantity for the first trial order .
Q:Do you have motors in stocks?
A: No, all motors are made according to the customers' requirements, so it is difficult for us to make in stocks.
Q: What is the payment terms?
A:T/T, Paypal, Credit Card.etc, easy for your business.
Q:What information you need provide if you want we recommend motors for you?
A:You need provide the basic specification of the motor, like: Dimesnion, Application, Voltage, Speed and Torque. If you have samples or drawings, it's better you can send it to us.
