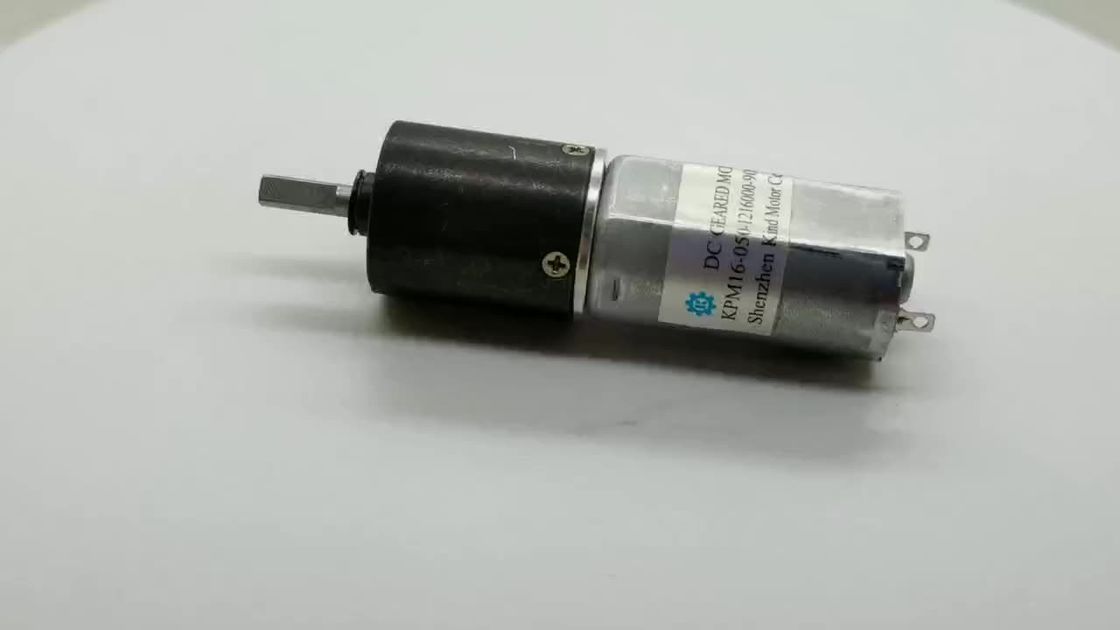

High torque long shaft dc planetary geared motor high torque 16mm 22mm 6v 7.2v 8v 9v 12v 24v 90rpm 100rpm 150rpm 200rpm 300rpm
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | kind motor |
| Certification: | CCC, ce, RoHS, ISO9001 |
| Model Number: | KPM16-050 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 Pieces |
|---|---|
| Price: | $4.50 - $12.00/Pieces |
| Packaging Details: | 1. Expect Standard Carton and Foam<br> <br>2. 1000pcs/carton |
| Supply Ability: | 1000000 Piece/Pieces per Month |
|
Detail Information |
|||
| Warranty: | Other | Usage: | BOAT, Car, Electric Bicycle, FAN, Home Appliance, Cosmetic Instrument, SMART HOME, Electric Lock |
|---|---|---|---|
| Type: | GEAR MOTOR | Torque: | ≤9kg.cm |
| Construction: | Permanent Magnet | Commutation: | Brush |
| Protect Feature: | Explosion-proof | Speed(RPM): | 1-5000rpm |
| Continuous Current(A): | 0.05-0.5A | Efficiency: | IE 1 |
| Product Name: | Dc Planetary Geared Motor High Torque 16mm 22mm | Gear Material: | Metal |
| Application: | Intelligent Product | Operating Temperatue Range: | -10- +50℃ |
| Diameter Size: | 16mm | Weight: | 40g |
| Direction Of Rotation: | CW CCW | Voltage Range: | 1.5v-24v |
| Noise: | Low Noise Level | Brush Type: | Carbon Brush Or Metal Brush |
| Port: | ShenZhen /HK | ||
Product Description
High torque long shaft dc planetary geared motor high torque 16mm 22mm 6v 7.2v 8v 9v 12v 24v 90rpm 100rpm 150rpm 200rpm 300rpm
Support Customization | ||
Prodcut Type | DC Planetary Geared Motor | |
Model | KPM16-050 | |
Voltage | 3-24v | |
Speed | 1 to 5000rpm | |
Torque | ≤9kg.cm | |
Shaft diameter | 3mm D Shaft(Can Customized) | |
Encoder | Can Add | |
Typical Application | Electric Lock, Safebox, Robot, Acuator, Electric Valve, Toy,Intelligent product. | |
█ The parameters can customized,the motor can have other speed and torque
█ The voltage range 6v-36v,as 6v,7.4v,8v,9v,12v,14.4v,18v,24v,36v etc
█ This gearbox can with other DC Motor,as dc brush motor,DC brushless motor etc
█ The shaft size can customized
Product superiority:
█ 15 years experience in gear and motor design
█ OEM, ODM
█ Many type products to choose
█ 100% inspection before shipment
█ Good price and service
KPM28-395
Dia 28mm planetary geared motor
KPM36-555
Dia 36mm planetary geared motor
KPM42-775
Dia 42mm planetary geared motor
KGM20-180
Dia 20mm spur geared motor
KGM25-370
Dia 25mm spur geared motor
KGM37-555
Dia 37mm spur geared motor
> > > >More Products
Shipping Method | Shipping Time | Advantages & Disadvantages |
Express like DHL/UPS/FEDEX/TNT | 3-5 days with tracking number | Fast and expensive, door to door |
Air Shipping | 3-5 days | Fast, airport to airport, customers have to pick up the goods in the airport |
Sea Shipping | 15-30 days | Cheap and slow, port to port, customers have to pick up the goods in the port |
Question 1: Can you customize the motor and geared motor according to the customer's requirements?
Answer:YES. We can customize the parameters and the size of the motor and geared motor
Question 2: Can you provide the samples?
Answer:YES. Our company can provide the samples to you, and the delivery time is about 5-15days according to the specification of motor and gearbox you need.
Question 3:How to buy our products?
Answer: send us inquiry → confirm the parameters → receive our quotation → production the sample test → sign contract/deposit → mass production.
Question 4:What kind of data do i need to provide if i want to order?
Answer: Please kindly tell us your rated voltage, no load speed, load speed, load torque and size range, we can offer you the best plan.
Question 5:What if i don't know the above data?
Answer: Please contact our salesman to handle, we'll answer your questions patiently.
Question 6:How to pay the payment?
Answer: We accept payment by T/T, PayPal, the other payment ways also could be accepted. Please contact us before you pay by the other payment ways.
Question 7: How do contact us ?
Answer:Please send an inquiry . We will provide you with better product quality and service, thank you!
