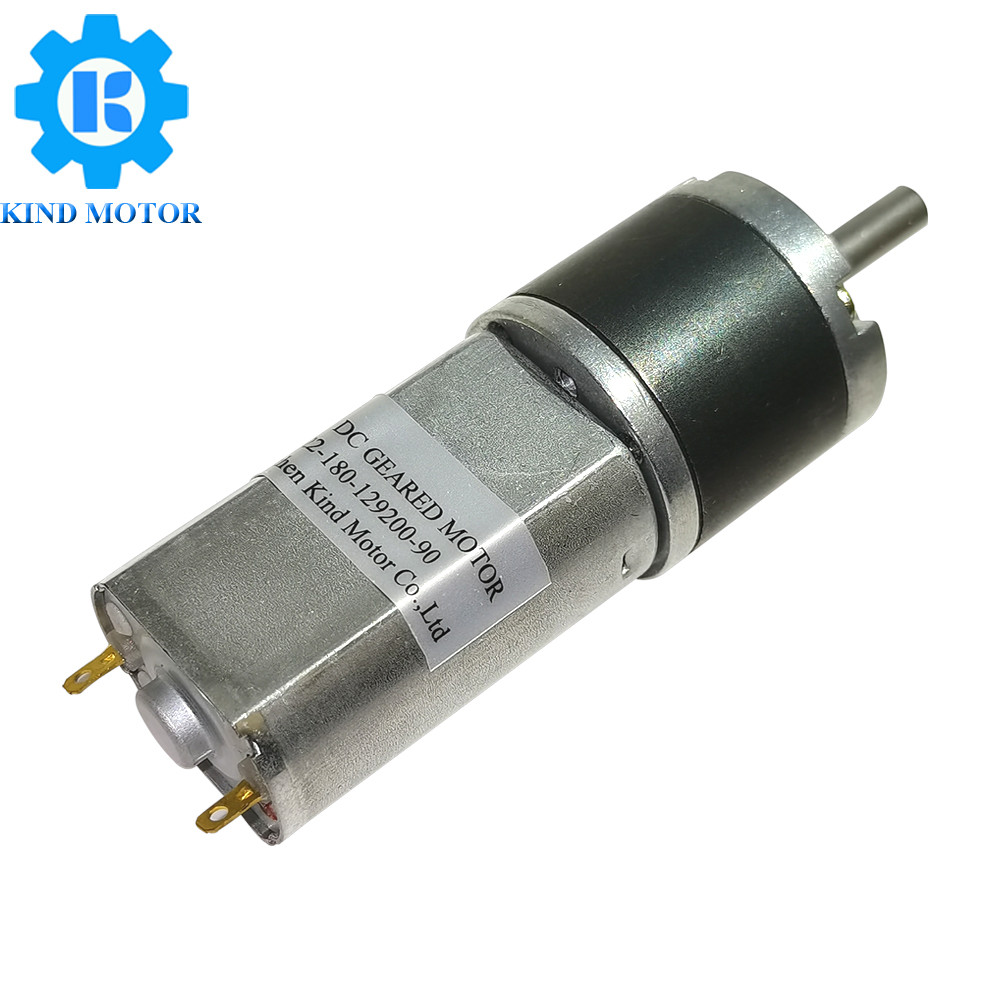

High Torque Diameter 22mm Gmp22-180 Dc 6v 12v 24v Encoder Planetary Gear Motor
Product Details:
| Place of Origin: | China |
| Brand Name: | Kind Motor |
| Certification: | ISO9001/RoHS/CE |
| Model Number: | KPM22-180 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 200 |
|---|---|
| Price: | $5.0-$12/PCS |
| Packaging Details: | Expect Standard Carton and Foam |
| Delivery Time: | 1-6 weeks |
| Payment Terms: | L/C, D/A, D/P, T/T,Paypal, Western Union |
| Supply Ability: | 500000/Month |
|
Detail Information |
|||
| Voltage(v): | 3v～24v | Speed(rpm): | 1rpm～4000rpm |
|---|---|---|---|
| Gears Material: | Stainless Steel | Brush Type: | Metal Brushed Or Carbon Brushed |
| Type: | 22mm DC Planetary Geared Motor | Rated Torque: | ＜12Kg.cm |
| Continuous Current(a): | ≤7A | Output Power: | ≤4W |
| Weight: | 60g | ||
| High Light: | high torque 30 rpm 12v dc geared motor,22mm 12v dc metal gear motor 30 rpm,12v dc metal gear motor 30 rpm |
||
Product Description
High torque diameter 22mm gmp22-180 dc 6volt 12volt 24volt encoder planetary
gear motor manufacturers
Product introduction
This is 22mm dc 6v 12v 24v encoder planetary gear motor,it's planetary gearbox,it's stronger
than spur gaerbox,the gearbox can with 030 and 050 motors,the motors have precious metal
brushed and carbon-brushed,the gearbox have many different reduction ratio,the motors can
with 12ppr and 16ppr encoder.
Brand:Kind Motor
| Model | KPM22-180 |
| Gears Material | Metal |
| Gearbox Reduction ratio | 1:4-1:2418 |
| Motor model | 130 motor,length is 25mm 180 motor,length is 32mm |
| Brush Type | Precious Metal-Brush/Carbon-Brush |
| Voltage |
3vdc,3.3vdc,3.7vdc,4.5vdc,5vdc,6vdc,7.4vdc,9vdc,
12vdc,24vdc
|
| Speed | 1rpm - 4000rpm |
| Rated Torque |
≤6kg.cm
|
| Shaft Size | 4mm D shaft(Can Customized) |
| Typical Application |
Smart Lock, Robot, Electric Valve,Toy,Massage instrument,
Electric screwdriver,Beauty equipment,Medical industry,ATM equipment,Electric curtain,etc.
|
Product Parameters
█ODM & OEM
█If you need other size and patameters,diameter from 8mm~60mm can be chosen
█The parameters and shaft size can customized
22mm gmp22-180 dc 6v 12v 24v encoder planetary gear motor
