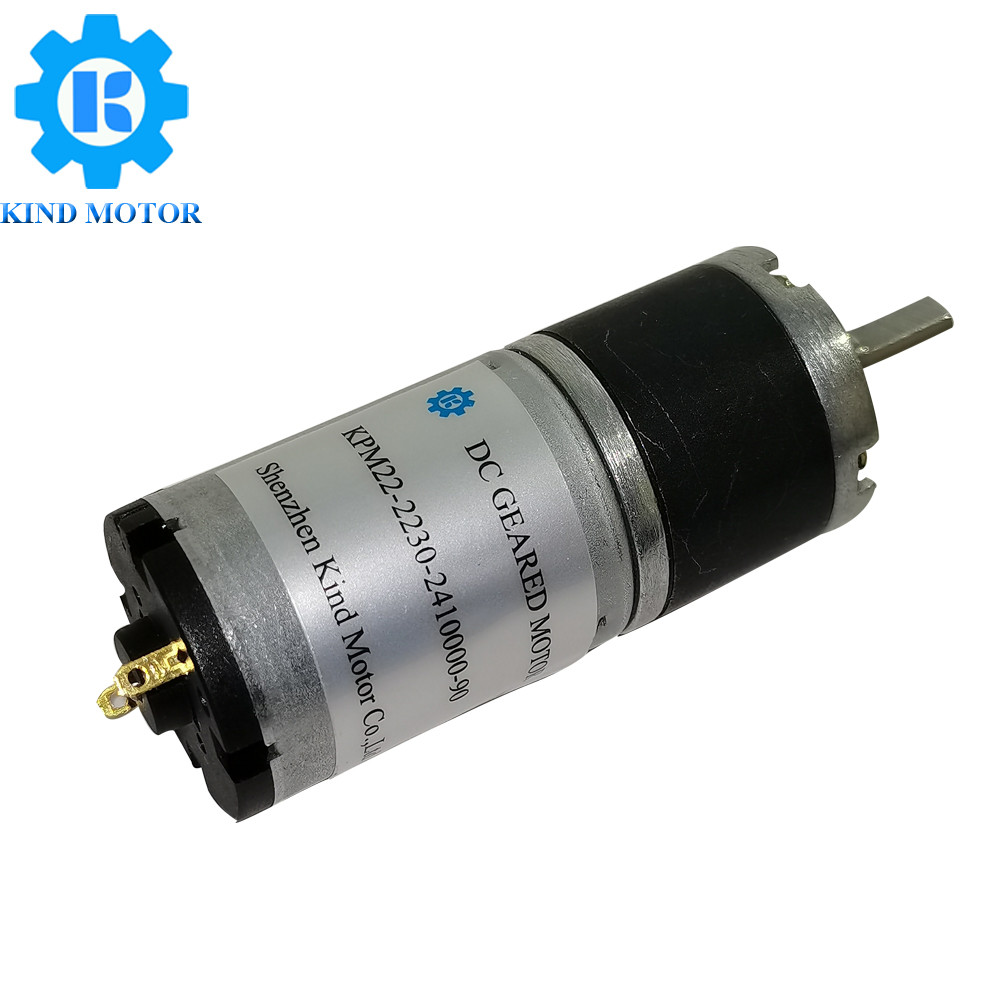

Low Noise Dc 6v 12v 24v 22mm Micro Planetary Gear Motor For Intelligent Products
Product Details:
| Place of Origin: | China |
| Brand Name: | Kind Motor |
| Certification: | ISO9001/RoHS/CE |
| Model Number: | KPM22-2230 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 200 |
|---|---|
| Price: | $5.5-$12.5/PCS |
| Packaging Details: | Expect Standard Carton and Foam |
| Delivery Time: | 1-6 weeks |
| Payment Terms: | L/C, D/A, D/P, T/T,Paypal, Western Union |
| Supply Ability: | 500000/Month |
|
Detail Information |
|||
| Voltage(v): | 3 Volt～36 Volt | Speed(rpm): | 1 Rpm-3600 Rpm |
|---|---|---|---|
| Gears Material: | Stainless Steel | Brush Type: | Carbon-brushes/Metal-brushes |
| Type: | DC Planetary Geared Motor | Rated Torque: | 7.1kg.cm |
| Stall Torque: | 12.2kg.cm | Continuous Current(a): | ≤7.7A |
| Output Power: | ≤4.6W | Weight: | 67g |
| High Light: | 67g 18v dc mega torque geared motor,18v dc mega torque geared motor,300 rpm high torque dc motor |
||
Product Description
High torque low noise dc 3v 6v 8v 12v 24v 22mm diameter micro planetary
gear motor for electric curtain and lock
Product introduction
This is 22mm diameter micro planetary gear motor,the voltage can be 3vdc 5vdc 6vdc
7.2vdc 8vdc 9vdc 12vdc 24vdc ,the planetary gearbox have high torque,it's can with flat
130 180 motors and round 2230 2238 motor,the motors parameters can customized,the
motors can with encoder,the encoders have 12ppr and 16ppr.
Brand:Kind Motor
| Model | KPM22-180 |
| Gears Material | All-Metal |
| Gearbox Reduction ratio | 4/1-2418/1 |
| Motor model | 2230 round brush motor,length is 30mm 2238 round brush motor,length is 38mm |
| Brush Type | Carbon-Brush |
| Voltage |
3.0 volt,3.7 volt,4.5 volt,5.0 volt,6.0 volt,7.4 volt,9.0 volt,
12.0 volt,24.0 volt
|
| Speed | 1rpm ～3500rpm |
| Rated Torque |
≤7.1kg.cm
|
| Shaft Size | 4mm D shaft(Can Customized) |
| Typical Application |
Smart Lock, Robot, Electric Valve,Toy,Massage instrument,
Electric screwdriver,Beauty equipment,Medical industry,ATM equipment,Electric curtain,etc.
|
Product Parameters
█ODM & OEM
█If you need other size and patameters,diameter from 8mm~60mm can be chosen
█The parameters and shaft size can customized
22mm planetary reduction gearbox with dc 12v 24v 2230 brush motor
22mm planetary trduction gearbox with dc 6v 12v 24v fk180 brush motor
