Micro 28mm Kpm28-395 Dc 6volt 12volt 24volt Metal Planetary Gear Reducer Motor
Product Details:
| Place of Origin: | China |
| Brand Name: | Kind Motor |
| Certification: | ISO9001/RoHS/CE |
| Model Number: | KPM28-395 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 200 |
|---|---|
| Price: | $5.5-$12.5/PCS |
| Packaging Details: | Expect Standard Carton and Foam |
| Delivery Time: | 1-6 weeks |
| Payment Terms: | L/C, D/A, D/P, T/T,Paypal, Western Union |
| Supply Ability: | 500000/Month |
|
Detail Information |
|||
| Voltage(v): | 3vdc-36vdc | Speed(rpm): | 1rpm～3500rpm |
|---|---|---|---|
| Gears Material: | Stainless Steel | Brush Type: | Brushed/Brushless |
| Type: | DC Planetary Gearbox Motor | Rated Torque: | ＜11kg.cm |
| Stall Torque: | ＜23kg.cm | Continuous Current(a): | ≤6.6A |
| Output Power: | ≤3.6W | Weight: | 186g |
| High Light: | 28mm Planetary DC Geared Motor,186g Planetary DC Geared Motor,24v dc motor with gearbox |
||
Product Description
High torque low noise micro 28mm pm28-395 pm32-395 dc 6volt 12volt 24volt
metal planetary gear reducer motor
Product introduction

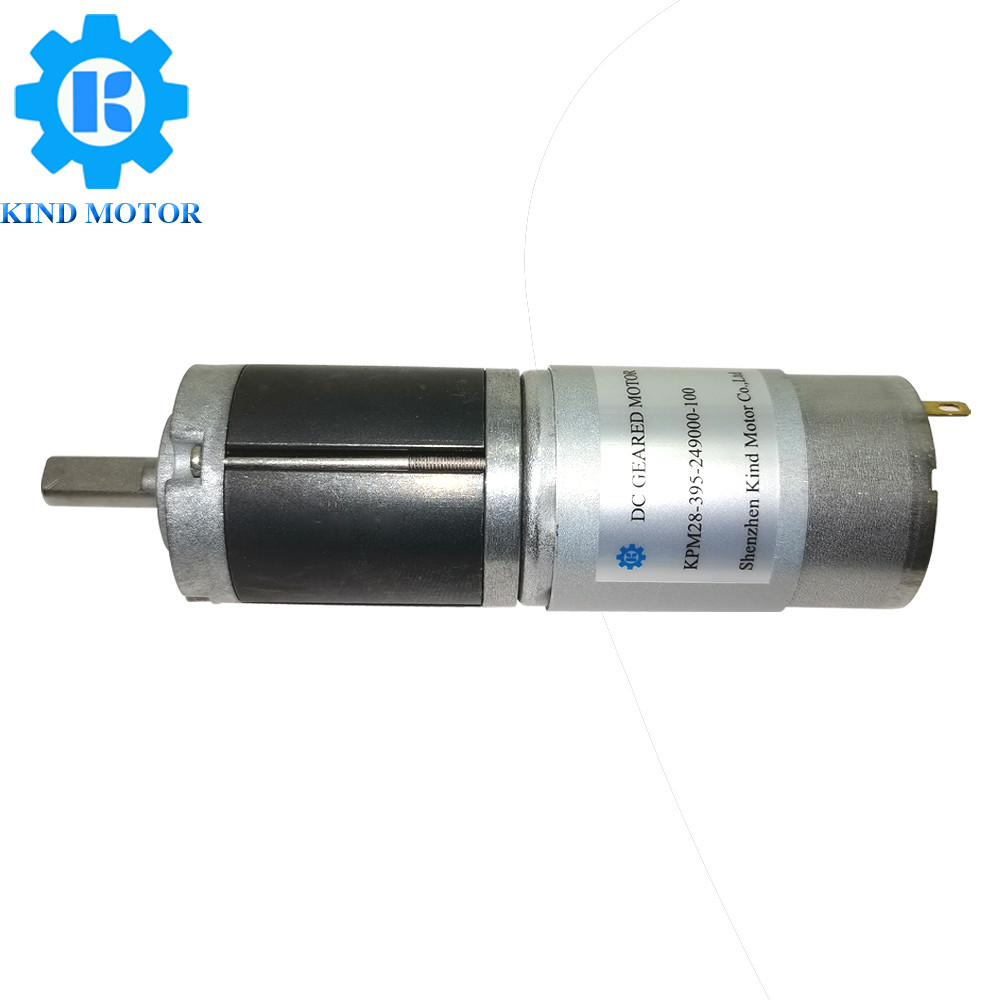

This is 28mm pm28-395 dc 6volt 12volt 24volt metal planetary gear reducer motor,the planetary
gearbox have high torque and high efficiency,it's can with 385 395 carbon brush motors and 2838
2847 brushless motor,the voltage can be 6vdc 7.2vdc 8vdc 9vdc 12vdc 24vdc,the parameters can
customized,the brush motors can with 12ppr and 16ppr encoder.
Brand:Kind Motor
| Model | KPM28-395 |
| Gears Material | All-Metal |
| Gearbox Reduction ratio | 5/1～2140/1 |
| Motor model | RS385 permanent magnet brush motor,length is 38mm RS395 permanent magnet brush motor,length is 47mm |
| Brush Type | Carbon-Brush/Brushless |
| Voltage |
4.5volt,5volt,6volt,7.4volt,9volt,12volt,24volt
|
| Speed | 1rpm ～3500rpm |
| Rated Torque |
＜1.1Nm
|
| Shaft Size | 6mm D shaft(Can Customized) |
| Typical Application |
Smart Lock, Robot, Electric Valve,Toy,Massage instrument,
Electric screwdriver,Beauty equipment,Medical industry,ATM equipment,Electric curtain,etc.
|
Product Parameters
█ODM & OEM
█If you need other size and patameters,diameter from 8mm~60mm can be chosen
█The parameters and shaft size can customized
28mm planetary gearbox with dc 6volt 12volt 24volt 395 carbon brush motor
