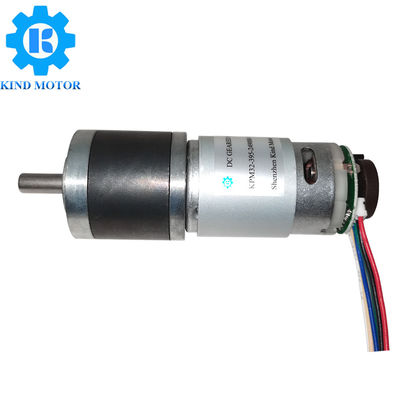

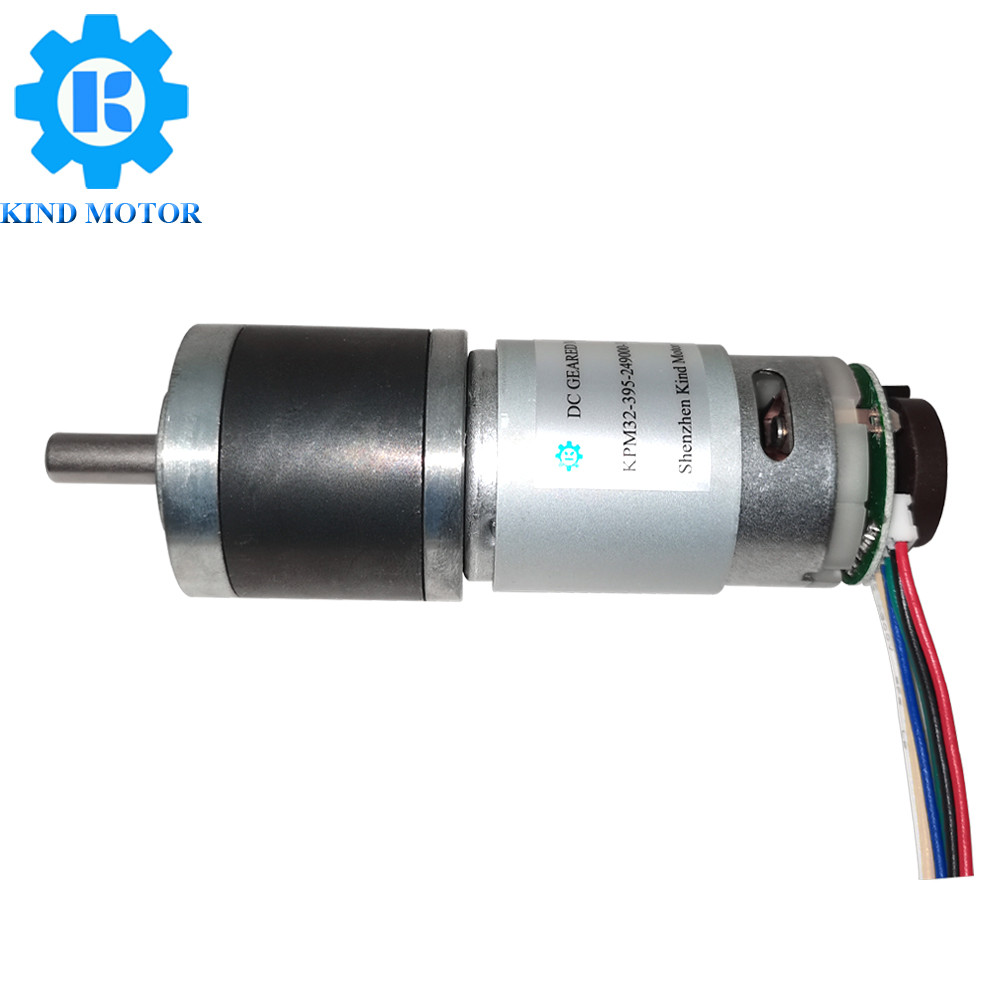

32mm Ig32 Pgm32 Planetary Gear Motor Dc 6v 12v 24v With Encoder
Product Details:
| Place of Origin: | China |
| Brand Name: | Kind Motor |
| Certification: | ISO9001/RoHS/CE |
| Model Number: | KPM32-395-EN |
Payment & Shipping Terms:
| Minimum Order Quantity: | 200 |
|---|---|
| Price: | $5.5-$12.5/PCS |
| Packaging Details: | Expect Standard Carton and Foam |
| Delivery Time: | 1-6 weeks |
| Payment Terms: | L/C, D/A, D/P, T/T,Paypal, Western Union |
| Supply Ability: | 500000/Month |
|
Detail Information |
|||
| Voltage(v): | 3v-36v | Speed(rpm): | 1rpm～3300rpm |
|---|---|---|---|
| Gears Material: | Stainless Steel | Brush Type: | Brushes/Brushless |
| Type: | Planetary Gea Motor | Rated Torque: | ≤32kg.cm |
| Continuous Current(a): | ≤6.8A | Output Power: | ≤3.8W |
| Weight: | 280g | ||
| Highlight: | planetary gear motor 12v,3.8W planetary gear motor 12v,3.8W rs 385 dc motor |
||
Product Description
32mm ig32 pgm32 reductions low rpm planetary gear motor dc 6v 12v 24v with
encoder
Product introduction
This is 28mm dc 12v-24v planetary gear motor,the planetary gearbox can withstand high
torque,it's can with carbon-brush motors and brushless motor,the voltage can be 6 v 7.2 v
8 v 9 v 12 v 24 v,the parameters and shaft can customized according requirement,the brush
motors can with 12ppr and 16ppr encoder.
Brand:Kind Motor
| Model | KPM32-395-EN |
| Gears Material | All Metal |
| Gearbox Reduction ratio | 1/5～1/2142 |
| Motor model | KRS385 carbon brush motor,length is 38mm KRS395 carbon brush motor,length is 47mm |
| Brush Type | Carbon-Brush/Brushless |
| Voltage | 4.5 v,5 v,6 v,7.4 v,9 v,12 v, 14.4 v, 18 v, 24 v |
| Speed | 1rpm ～3300rpm |
| Rated Torque |
＜1.62Nm
|
| Shaft Size | 6mm D shaft(Can Customized) |
| Typical Application |
Smart Lock, Robot, Electric Valve,Toy,Massage instrument,
Electric screwdriver,Beauty equipment,Medical industry,ATM equipment,Electric curtain,etc.
|
Product Parameters
█ODM & OEM
█If you need other size and patameters,diameter from 8mm~60mm can be chosen
█The parameters and shaft size can customized
RS395 dc caron-brush motor with 28mm planetary gearbox
