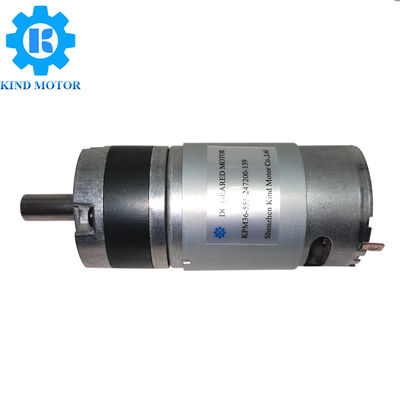

15A 12v Brushed Dc Motor , Stainless steel 10 Rpm Gear Motor 3.5Nm
Product Details:
| Place of Origin: | China |
| Brand Name: | Kind Motor |
| Certification: | ISO9001/RoHS/CE |
| Model Number: | KPM36-555 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 500pcs |
|---|---|
| Price: | $6-$15/PCS |
| Packaging Details: | Expect Standard Carton and Foam |
| Delivery Time: | 1-6 weeks |
| Payment Terms: | L/C, D/A, D/P, T/T,Paypal, Western Union |
| Supply Ability: | 500000/Month |
|
Detail Information |
|||
| Voltage(v): | 5v-36v | Speed(rpm): | 0.5rpm～2100rpm |
|---|---|---|---|
| Gears Material: | Stainless Steel | Brush Type: | Brushes/Brushless |
| Type: | Planetary Geared Motor | Rated Torque: | ≤3.5Nm |
| Stall Torque: | ≤9.5Nm | Continuous Current(a): | ≤15A |
| Output Power: | ≤60W | Weight: | 410g |
| High Light: | 15A 12v brushed dc motor,12v brushed dc motor,3.5Nm 10 Rpm Gear Motor |
||
Product Description
Low speed 36mm 12v 24v 10w 20w 30w 40w 50w 60w gmp36-555 metal planetary
geared dc brush motor
Product introduction
This is 36mm 12v 24v 10w 20w 30w 40w 50w 60w gmp36-555 metal planetary geared dc brush
motor,the planetary gearbox can withstand high torque,it's can with DC carbon-brushed motors
and DC brushless motor,the voltage can be 6 v 7.2 v 8 v 9 v 12 v 24 v,the parameters and shaft
can customized according requirement,the brushed motors can with 12ppr and 16ppr encoder.
Brand:Kind Motor
| Model | KPM36-555 |
| Gears Material | All Metal |
| Gearbox Reduction ratio | 1:5～1:3736 |
| Motor model | KRS545 brush motor,length is 50mm KRS555 brush motor,length is 57mm |
| Brush Type | Carbon-Brush/Brushless |
| Voltage | 5 vdc,6 vdc,7.4 vdc,9 vdc,12 vdc,14.4 vdc,18 vdc,24 vdc |
| Speed | 0.5rpm ～2100rpm |
| Rated Torque |
≤3.5Nm
|
| Shaft Size | 8mm D shaft(Can Customized) |
| Typical Application |
Robot, Electric Valve,Toy,Massage instrument,Beauty equipment,Medical industry,ATM equipment,Electric curtain,Equipmentetc.
|
Product Parameters
█ODM & OEM
█If you need other size and patameters,diameter from 8mm~60mm can be chosen
█The parameters and shaft size can customized
RS555 dc 12v 24v caron-brushed motor with 36mm planetary gearbox
